TECHNICAL DATA SHEET
DIMENSIONS OF RELEVANT PARTS
| Model | Steps | A [mm] |
B [mm] |
C [mm] |
D [mm] |
E [mm] |
F [mm] |
G [mm] |
Load [kg] |
| HN-FS-800 | 2 | 605 | 842 | 910 | 217 | 443 | 378 | 1251 | 160 |
| HN-FS-900 | 3 | 957 | 1194 | 1340 | 464 | 690 | 808 | 1681 | 190 |
| HN-FS-1000 | 4 | 1310 | 1546 | 1770 | 710 | 936 | 1238 | 2111 | 220 |
| HN-FS-1100 | 5 | 1662 | 1899 | 2200 | 957 | 1183 | 1668 | 2541 | 240 |

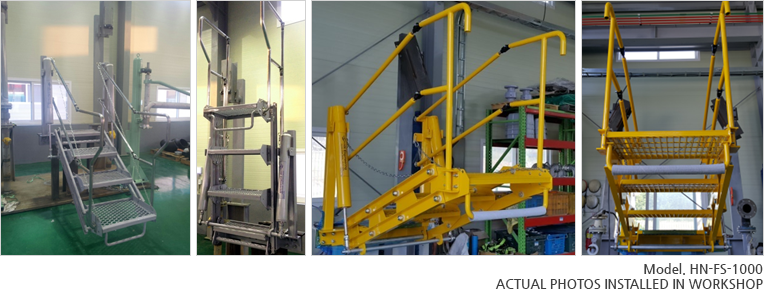

CHARACTERISTIC OF FOLDING STAIRS
- FOLDING STAIRS CAN REDUCE THE RISK OF ACCIDENTS WHEN STEPPING FROM A FIXED PLATFORM TO TANK LORRY.
- VARIOUS TYPES OF FOLDING STAIRS CAN BE AVAILABLE, THAT IS, 2/3/4/5 STEPS (REF. DIMENSIONS DESCRIBED IN THE TECHNICAL DATA SHEET/TABLE, ABOVE)
- THE HORIZONTAL REACH OF FOLDING STAIRS IS FROM APPROX.
900MM TO 2,200MM (REF. DIMENSIONS DESCRIBED IN THE
TECHNICAL DATA SHEET/TABLE, ABOVE) - STAIR TREADS ARE FITTED WITH STEEL MESHES THAT EASILY
DRAIN TO PREVENT ICY OR GREASY SURFACES. - EACH STEP REMAINS HORIZONTAL WHILE THE FOLDING STAIRS
AUTOMATICALLY ADJUST TO VARYING TANKER HEIGHTS. - SAFETY HANDRAILS ARE FITTED AS STANDARD.
- EQUIPPED WITH CHAIN TO ASSIST RETURNING STAIRS TO THE
PARKED POSITION. - RUBBER BUMPER IS USED TO PREVENT SPARKING AND REDUCE
THE RISK OF TANK DAMAGE.
